Dark Grey Granite Pool Tiles
Color: New G654 dark grey; even grain
Size: 10x30, 30x30, 30x60, 40x60 cm
Finished: Flamed and brushed; honed
Application: Pool edges, steps, decks
Low MOQ: One crate; sample free
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

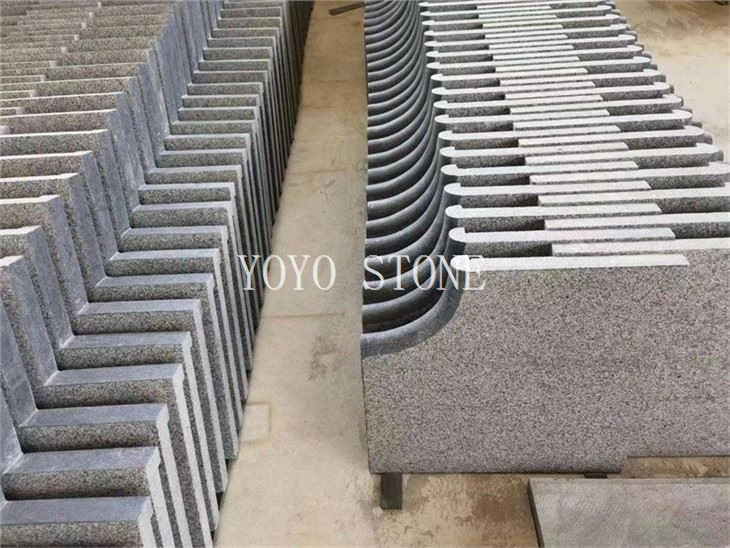

Pool tiles in New G654 are cut from a fine-grained granite with a cold grey ground and no veining, and the reason the material holds a pool edge so well is the same reason it punishes careless detailing: a face this even shows every irregularity in the geometry set against it. The tiles are produced at 10x30, 30x30, 30x60 and 40x60 cm with a bullnose or half bullnose formed on the long edge, and the coping pieces that sit on top of them run to 50x35, 60x35, 80x35 and 50x50 cm.
The stone travels under several names in the trade, Cambodia G654 among them, and the identity that matters commercially is New G654 as distinct from Old G654, which came out of Changtai in Fujian and stopped being quarried at scale in 2018; the two are different materials and are not interchangeable on a pool deck.
Products Description
| Parameter | Specification |
|---|---|
| Product and Coverage | Pool tiles, coping, bullnose strips, waterline bands, deck paving |
| Stone Type and Origin | Fine-grained dark grey granite; New G654 trade name |
| Also Sold As | Cambodia G654, Padang Dark, Sesame Black |
| Colour and Figure | Cold dark grey ground; fine even grain; no veining |
| Pool Tile Sizes | 10x30, 30x30, 30x60, 40x60 cm; custom to drawing |
| Coping Sizes | 50x35, 60x35, 80x35, 50x50 cm; custom to drawing |
| Edge Profiles | Bullnose, half bullnose, laminated bullnose, square, drop face |
| Thickness | 20, 30, 50 mm; 20 mm only with the nose fully bedded |
| Nose Radius | About 10 mm full bullnose on 20 mm stock; 5 mm half |
| Dimensional Tolerance | +1 mm thickness; +1 mm on angles |
| Flatness And Verticality | +0.3 mm surface flatness; +0.5 mm adjacent edge verticality |

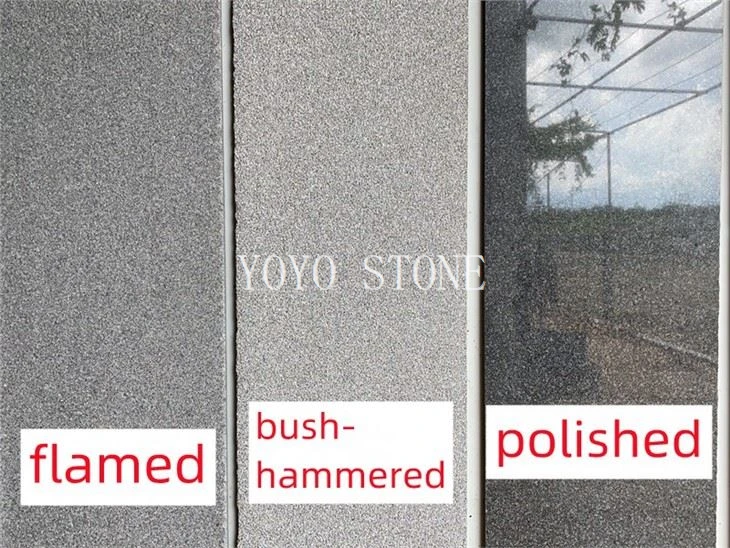

| Surface Finishes | Flamed, flamed and brushed, honed, polished, bush hammered |
| Slip Reading | R11 to R12 to DIN 51130 on the delivered wet face |
| Polished Gloss | 90 or above, read after washing and drying down |
| Bulk Density | 2.70 g/cm³; 54 kg per m² at 20 mm |
| Water Absorption | Under 0.20 percent by mass |
| Compressive Strength | 191 MPa, the G654 range figure |
| Flexural Strength | 18.5 MPa, the G654 range figure |
| Bond and Joint | Decoupled from the shell; flexible sealant at the waterline |
| Packing, Port And Lead Time | Fumigated braced crates; FOB Xiamen; 20 to 30 days |
Quality Standards
A pool edge is not accepted as a stone, because the pieces that fail there are rarely the ones that failed at the saw.
What gets checked is whether the nose radius repeats along a whole course, whether the pieces that will sit together at the waterline were selected from one run at the works rather than matched afterwards, whether the face being loaded is the face the client approved, and whether the course is still square and unmarked at the far end of the voyage. Each of those is a property of the course rather than of the piece, which is why the inspection is run in that order here.
01
Infrared Cut Alignment
Every cut is set to an infrared line on the bridge saw instead of being marked and followed by eye, because the nose radius and the joint face of a 300 mm pool tile have to repeat along a course, and a millimetre of drift at the saw shows as a wavy edge once the pieces are laid.
02
Pool Course Trial Set
The coping course and its waterline band are laid out dry to the pool drawing on the shop floor before anything is packed, since pieces that will sit side by side in one course have to be drawn from a single run here rather than matched on the deck after shipment.
3
Gloss Read After Washing
Gloss is taken at 90 or above on polished production only after the face has been washed and dried down, because a waxed or water-darkened surface carries a false reading, while the flamed and brushed pool face is judged for even texture instead of for gloss.
04
Fumigation And Bracing
Crates are fumigated to ISPM 15 and the load is braced inside the container against the crate frames rather than against the doors, because a coping course that shifts in transit arrives with damaged noses that cannot be re-cut at the far end.
Products Application
Typical Project & Application Scenarios
Waterline Bands and Caulk Joints
This is the band the water level runs up and down, and it is the one part of a pool interior that has to be both decorative and correctly jointed.
Swimmers' Hand-Rest and Entry Steps

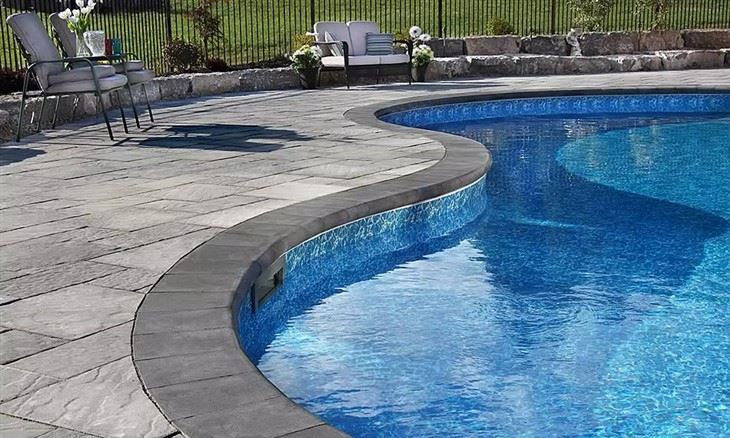

A coping nose is where swimmers put their hands, and entry steps take the same profile because a stepped edge is used in the same way.
Lap Pools and Competition Tanks

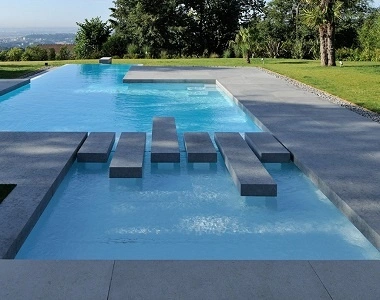

A competition tank tightens the tolerances rather than changing the material, because a pool edge is a measured line and not only a finish.
Infinity Edges and Wet-Deck Overflows
An infinity edge is the application where the coping stops being a border and becomes the weir, because the water level is set by the top of the stone and by nothing else.
FAQ
Everything You Want To Know
01. Is New G654 the same stone as G654?
02. Which finish should pool tiles and coping have?
Flamed and brushed, because a wet barefoot surround needs grip before it needs sheen and the pair reads around R11 to R12 on the wet DIN 51130 ramp. A polished face suits a vertical or indoor application, and gloss is only measured on polished production.
03. What thickness should pool coping be?
04. Does pool coping need an expansion joint?
05. Will a dark grey pool edge show marks?
It hides algae far better than a pale stone does, and it shows the opposite: limescale and efflorescence from evaporating water dry to a pale bloom, and a light sealant reads as a bright line against the dark face. Both are maintenance items rather than defects.
